Checkpoint+ SL 5 is an electric gravel bike featuring a TQ HPR60 motor, 360Wh battery, OCLV Carbon frame, and 12-speed Shimano GRX 1x shifting.
Checkpoint+ SL 5 is an electric gravel bike featuring a TQ HPR60 motor, 360Wh battery, OCLV Carbon frame, and 12-speed Shimano GRX 1x shifting.
Trek

Trek Checkpoint+ SL 5 E-Gravel Bike in Bronze Age/Dark Web

$5,999.99
Size Guide
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Trek Checkpoint+ SL 5 E-Gravel Bike in Bronze Age/Dark Web

Season:2026

Brand:Trek

Code:58107MATBNZAGEWEB

The Checkpoint+ SL 5 is an electric gravel bike built to take you the distance, featuring a TQ HPR60 motor and a 360Wh battery. It comes ready to roll with an OCLV Carbon frame, durable alloy wheels, and 12-speed Shimano GRX 1x shifting.

The industry-leading TQ HPR 60 harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It is ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 45 km/h (28 mph) with 80 km (50 miles) of range (in eco mode). You can choose how much boost you get and when you get it with three assist modes.

Explore even farther with an optional 160Wh Range Extender that fits neatly in your bottle cage and gives an extra 44% more range. IsoSpeed technology soaks up fatiguing bumps in the road so you can ride stronger for longer.

Confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position to tackle even the most epic, all-day adventures. Room for tires up to 50mm wide (as measured) lets you roll right over the big stuff.

The Trek Central app seamlessly connects to the Checkpoint+ for real-time range calculations, activity tracking, and custom motor tuning. Plus, navigation and mapping features help you stay on course wherever you ride.

Shimano GRX was designed from the ground up for gravel adventure, featuring gravel-specific ergonomics, optimized gearing options, rugged reliability, and a quiet, stable drivetrain.

Features:

  • OCLV Carbon frame.
  • 360Wh battery.
  • Mounts on the frame and fork for front and rear racks, fenders, and adventure frame and triangle bags.
  • Designed to fit extra hydration in addition to all bags.
  • Compatible with a suspension fork (up to 40mm of travel) and a dropper post.
  • E-systems are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification.
Technical Information
  • Frame
    500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disk, fender mounts, UDH, 142x12mm chamfered thru axle

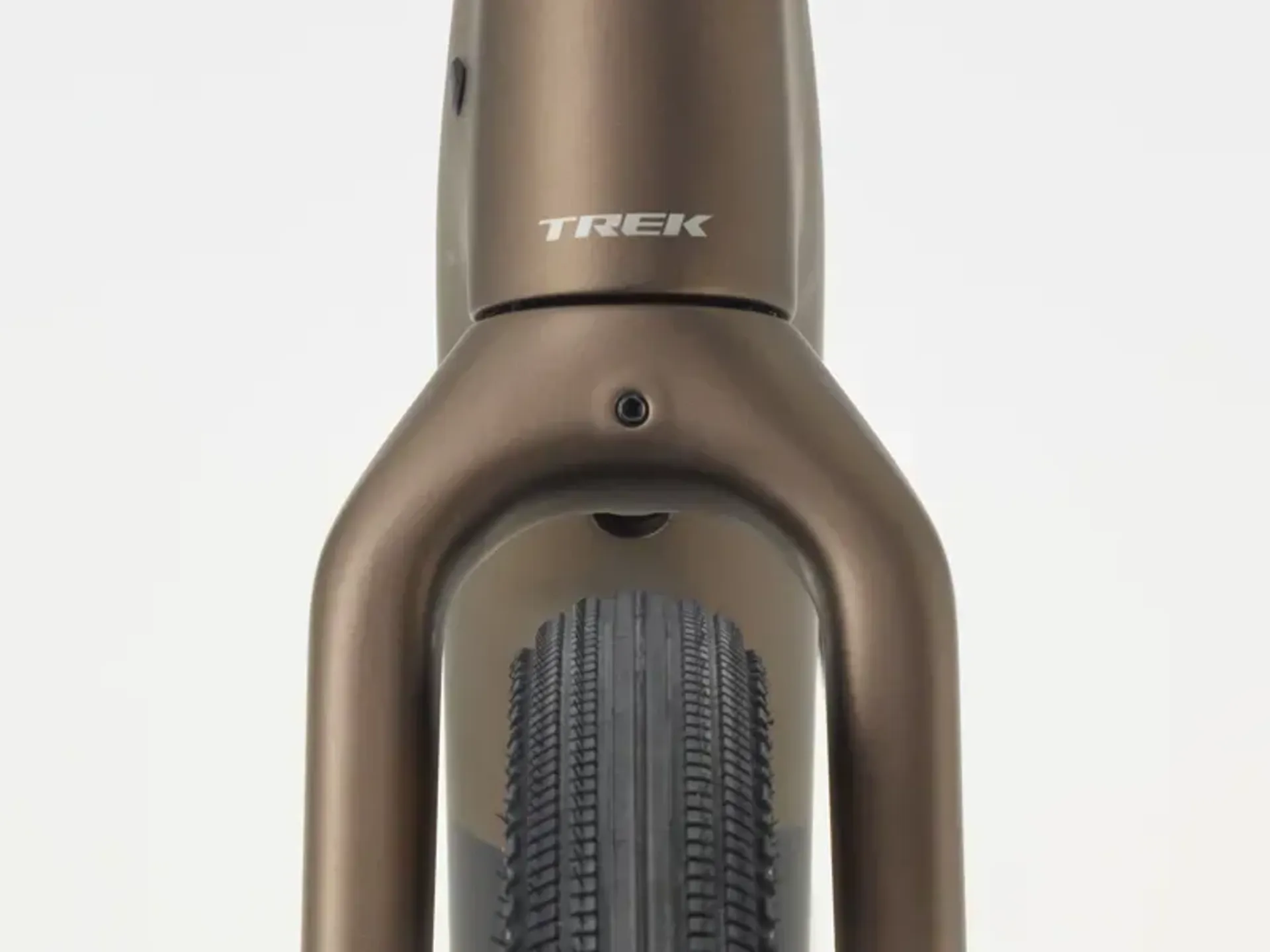

  • Fork
    Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disk, 12x100mm chamfered thru axle
  • Weight
    ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
  • Battery
    TQ 360Wh
  • Charger
    TQ 4A charger
  • Motor
    TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
  • E-bike Classification
    Class 3
  • Shifter
    Shimano GRX RX820, 12 speed
  • Rear derailleur
    Shimano GRX RX822, 51T max cog

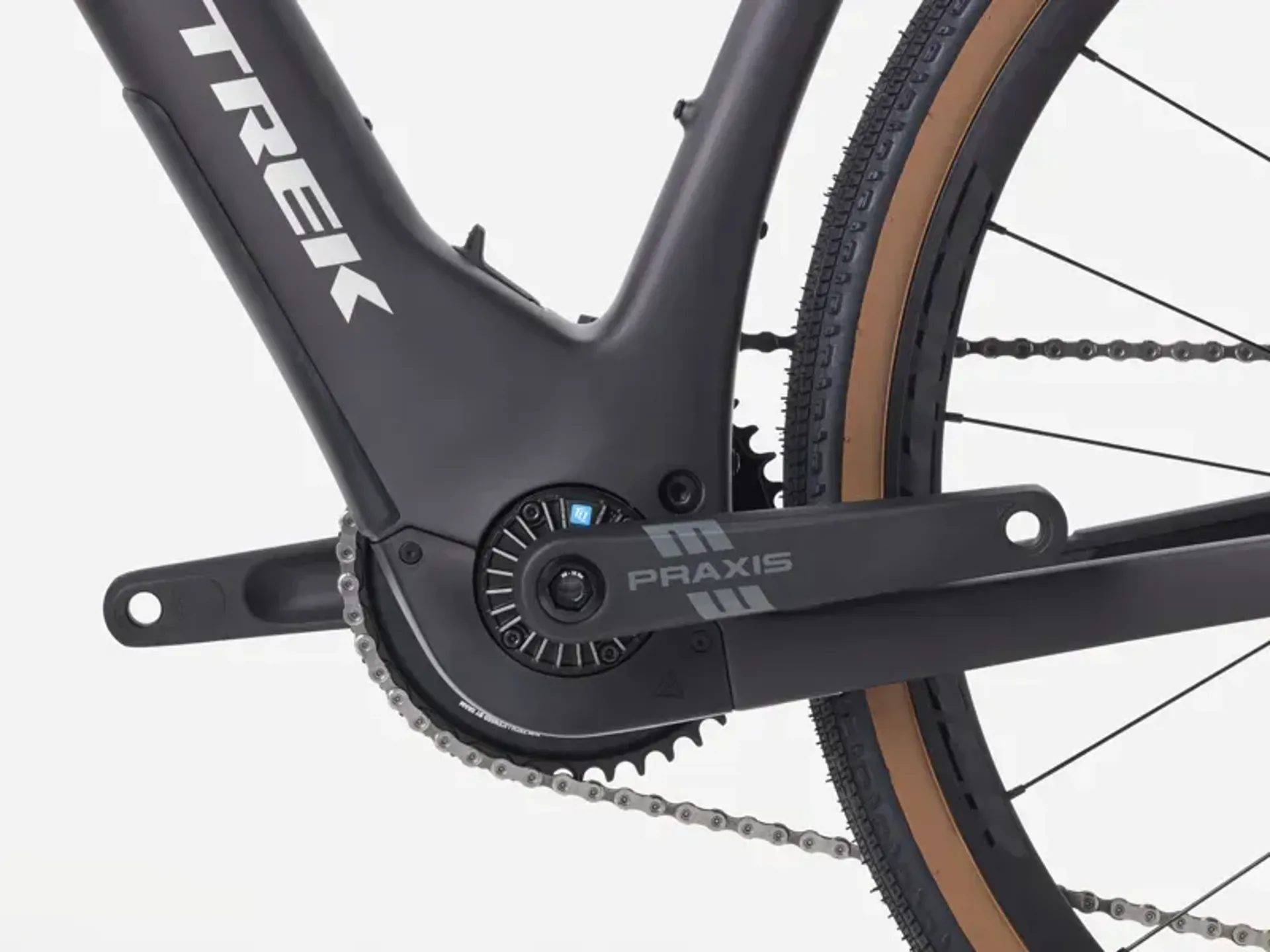

  • Crank
    Size: XS, S: Praxis Alloy, 165mm length; Size: M, ML: Praxis Alloy, 170mm length; Size: L, XL: Praxis Alloy, 172.5mm length
  • Cassette
    Size: XS, S, M, ML, L, XL: Shimano XT M8200, 10-51, 12 speed; Size: XS, S, M, ML, L, XL: Shimano XT M8100, 10-51, 12 speed
  • Chain
    Shimano Ultegra/XT M8100
  • Max chainring size
    1x: 44T
  • Wheel front
    Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
  • Wheel rear
    Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano Micro Spline freehub, 142x12 thru axle
  • Skewer front
    Bontrager Switch chamfered thru axle
  • Skewer rear
    Bontrager Switch chamfered thru axle, removable lever
  • Tire
    Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
  • Tire part
    Bontrager TLR sealant, 6oz
  • Rim strip
    Bontrager TLR
  • Max tire size
    50mm without fenders, 42mm with fenders (as measured, see manual for details)
  • Saddle
    Verse Short Comp, steel rails, 145mm width
  • Seatpost
    Bontrager carbon, 27.2mm, 8mm offset, 330mm length
  • Handlebar
    Size: XS, S: Bontrager Elite Gravel, alloy, 40cm width; Size: M, ML: Bontrager Elite Gravel, alloy, 42cm width; Size: L: Bontrager Elite Gravel, alloy, 44cm width; Size: XL: Bontrager Elite Gravel, alloy, 46cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
    Size: XS: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: S, M: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: ML, L: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: XL: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
  • Brake rotor
    Shimano CL800, centerlock, 160mm
  • Brake lever
    Shimano GRX RX820, 12 speed
  • Rotor size
    Max brake rotor sizes: 180mm front & rear
